EnergySeries 5000 two section slider.

Available Styles for EnergySeries 5000:

  • Double Hung
  • 2-Lite Slider
  • 3-Lite Slider
  • Picture Window

Features & Benefits:

  • Fusion welded sashes and master frame add strength and rigidity.
  • Beveled exterior master frame for clean, elegant look.
  • Hidden screen track for clean lines and added beauty.
  • Double barrier-fin weatherstripping at sash sides help keep out dirt and protect against air infiltration.
  • Slope sill forces water to drain to the exterior of the window.
  • Protective bulb at the sill seals out dust, dirt and air infiltration.
  • Vinyl frames and sashes made tough and solid with 100% uPVC (unplasticised PVC) powder that will never chip, peel, crack, or warp.
  • Full metal re-enforcedment on horizontal lift rails adds strength & security.
  • Dual ventilator locks provide safe & secure ventilation.
  • Constant force balance system eliminates sash cords, weights and pulleys.
  • Tilt-in top and bottom sashes make cleaning safe and easy from the inside of the home.

Optional:

  • See color chart below for available color options
  • Colonial and diamond grid patterns
  • Millennium High Performance Glass
  • Triple Pane Glass

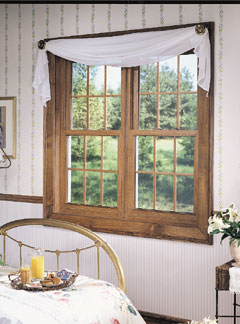

Pictured on the left are 2 EnergySeries 3000 double hung windows with optional colonial grids. On the right is a picture of an EnergySeries 3000 three section slider window. The three section slider model is available in 1/4-1/2-1/4 (pictured) or 1/3-1/3-1/3 dimensions.

EnergySeries 3000 window

is manufactured by Associated Materials Inc.

Exclusively for The Acri Company


Get Our Price
name
city / state
phone
email

EnergySeries 5000 (Model 0601) Welded Double Hung Vinyl Window

DESIGN PRESSURE H-LC40

THERMAL – NFRC 100-97

U-Value
Solar Heat Gain
Visible Light Transmittance
Clear Glass
.47
.54
.56
Millennium w/ Intercept Spacer
.30
.28
.51
Millennium High Performance Glass w/ SuperSpacer
.28
.20
.46



Appropriate Applications
This model is most appropriately used in a replacement or retrofit application although accessories are available for a new construction application.

* Single Family
* Multi-Family
* Light Commercial

Standard Features

* Insulated Glass Unit with optimal air space for year round performance
* Interlock at sash meeting rails
* Tilt-In Sashes
* Dual Vent Locks
* Fusion-Welded Sash and Main frame with multi-wall extrusion design for superior welding strength
* Metal reinforcement at meeting rails
* Beveled Exterior Master Frame and Sash
* Interior Glazing System
* Zero Clearing Mulling System
* Triple-Barrier Weatherstripping at all sash points
* Quad-4 Weatherstripping at header and sill
* Fully Weatherstripped Step Sill for added protection
* Hidden Screen Track
* Color-Coordinated Cam Lock and Keeper

Options

* ClimaTech High Performance Insulated Glass Package
* Obscure Glass
* Flat, Contour, or Brass grids available in Colonial, Diamond, or Prairie configurations as well as etched glass
* Available in white or beige
* Light and Dark Oak and Cherry Woodgrain interior finish available
* Full complement of installation and finish accessories

Window Description

Each Model 0601 Window is designed with a fusion-welded vinyl sash and main frame for added strength and rigidity. So years of continual operation and harsh weather won’t diminish their quality or performance. And all Alside Windows are custom-made, utilizing the latest innovations, materials and manufacturing techniques.

Model 0601 double hung windows tilt in for easy cleaning, plus with our solid vinyl frames and sashes, they’re virtually maintenance free. Our multi-chambered frame, high quality weather-stripping, and insulated glass unit provide the ultimate in superior, all-weather insulation performance for all seasons.

Trade Associations

AAMA: American Architectural Manufacturers Association. A national trade association that establishes voluntary standards for the window, door and skylight industry.

ASTM: American Society for Testing and Materials. Organization that sets standards for the testing of materials.

IGCC: Insulating Glass Certification Council. A non-profit organization which sponsors and directs a program of periodic accelerated laboratory testing and unannounced plant inspections to insure continuing product performance through specified standards.


NFRC: National Fenestration Rating Council. A non-profit, public/private organization created by the window, door and skylight industry. Their primary goal is to provide accurate information to measure and compare the energy performance of window, door and skylight products.

ENERGY STAR®: ENERGY STAR is a voluntary partnership between the U.S. Department of Energy, the U.S. Environmental Protection Agency and the fenestration industry. It is designed to assist consumers in the recognition of energy efficient products and promote the environmental and economic benefits of these products with the ENERGY STAR label and other program activities.


Explanation of Testing Data

To be a valid test, all of the structural testing below must be witnessed by an independent third party from an AAMA approved Test Laboratory. Once tested the Laboratory generates a Test Report and sends it to the AAMA Administrator for certification. The AAMA Administrator evaluates the data submitted and issues the Certification for that particular product.

STRUCTURAL
AAMA 101/I.S.2-97

DESIGN PRESSURE (DP): Products are designated by the design pressure for which they have been tested in pounds per square foot. Design loads start at 15 psf for ‘Residential’, 25 psf for ‘Light Commercial’, 30 psf for ‘Commercial’, and 40 psf for ‘Heavy Commercial’ windows. Higher design loads are then optional. This is also called the Performance Grade for that product. The actual structural test pressure required by test standard for a product equals 1.5 times the Design Pressure/Performance Grade. For example, an LC 30 Design Pressure/Performance Grade for a light commercial test size window, will have to pass a structural load test equal to 45 pounds per square foot (30 x 1.5 = 45 psf).

TEST SIZE: The windows are tested based on minimum test sizes for their respective applications. The windows are broken down into the following test classes which have been prescribed minimum test sizes: Residential (R), Light Commercial (LC), Commercial (C), Heavy Commercial (HC), and Architectural (AW).

AIR INFILTRATION: The Air Infiltration Test is conducted with the test unit installed in a wood buck and sealed to the structural test wall. The unit is tested with the sash(es) closed and locked. The unit is then subjected to the equivalent of a 25-mph wind load and the control panel measures the airflow through the window assembly. The designation on the test report reads cfm/sq. ft., which translates into cubic feet per minute per square foot of sash area. This is a pass/fail test with 0.30 cfm/sq. ft. as the high end and anything over the number (0.31 cfm/sq. ft. or higher) is a failure.

WATER: The Water Resistance Test is performed after the Air Infiltration Test. The test is performed by subjecting the window to a water spray of not less than 5 gallons per hour per square foot and applying the desired test pressure (wind load). The unit fails when the water overflows any part of the window and passes the interior vertical plane of the window. The Water Resistance Test is one of the major determining factors in the Grade Level of the window. The window water resistance must be at least 15% of the desired Design Pressure/Performance Grade. For example, an LC 30 product will have to pass a water resistance test equal to 4.5 pounds per square foot (30 x .15 = 4.5 psf).

STRUCTURAL LOAD: The Structural Load Test follows the Water Test. The content of this test is subjecting the window to various interior and exterior wind loads. An Exterior Load is referred to as a positive load, which would be the wind hitting perpendicular to the window from the outside of the structure and bowing the window inward. An Interior Load is referred to as a negative load, which occurs when the wind deflects off of a structure and creates a suction effect, bowing the window outward. The window structural loads are tested to 1.5 times the desired Design Pressure.

Thermally we simulate and test our windows to the guidelines set forth by the NFRC. Testing is done by a third party testing laboratory. Once the thermal simulations and validation is completed, the third party test lab sends them to our NFRC Administrator, which happens to be AAMA. There the data is analyzed, and if acceptable, is given a certification number and is added to our product database.

THERMAL
NFRC 100-97

Initially, we determine the content of the product matrix, which includes extrusions and reinforcements, used in the construction of the window, but more importantly the glazing options to be offered. This data is then forwarded to the independent third party test facility for simulations. The simulation process eliminates the need to physically test all of the various glazing options available, such as clear, low-e with argon, and Super Spacer. The computer simulates the window by evaluating the construction of the sash and main frame and the air chambers that comprise them. The particular glass option is then added to the equation and the thermal conductance is tabulated from that model. All of the glazing options are then inserted and the Product Matrix is constructed. Once established, the best possible unit from the Matrix is built for actual physical testing. The physical test window is sent to the test lab for Thermal Testing. The unit is put into a two sided chamber in which one side is heated to 70 degrees F and the other is cooled to 0 degrees F. Thermocouples are attached to the window in predetermined locations and the actual conductance of BTU’s is measured. This is where we get the “U-Value” of the window. U-Value is the measure of the rate heat flows through a window. The lower the U-Value the less heat a window will lose. The U-Value is the amount of heat, in BTU’s, that a window will lose by conduction, through each square foot of window area for each degree temperature difference across the window. If the U-value of the physical test unit is within 10% of the simulated unit in the product matrix, then the simulations are validated and accepted as “tested”.


SOLAR PROPERTIES
NFRC 200, 300, 301-97

After the window has been thermally simulated the Test Lab runs a simulation for the windows Optical Properties. Optical Properties include Solar Heat Gain Coefficient (SHGC) and Visible Transmittance (VT). Solar Heat Gain Coefficient is an energy performance rating that measures the fraction of incident solar radiation admitted through the total window or door assembly. The lower the number, the better the product is at resisting Solar Heat Gain. Visible Transmittance is an energy performance rating that measures the amount of visible light transmitted through the total window or door assembly. The higher the number, the more daylight a product lets in.


ENERGY STAR®

The Energy Star Label we now put on the window is used in conjunction with the NFRC program. We apply the Energy Star label only on the windows with Low-E and Argon (ClimaTech). The Energy Star program requires window and door products meet certain standards for U-Value and Solar Heat Gain Coefficient as well as Visible Light Transmittance.

The Department of Energy has established three climate regions; the Northern which is mostly heating, the Central which is heating and cooling, and the Southern which is mostly cooling. To comply with Energy Star requirements a product must meet the following standards:

Northern Region U-Value of 0.35 or below
SHGC – Any
Central Region U-Value of 0.40 or below
SHGC of 0.55 or below
Southern Region U-Value of 0.75 or below
SHGC of 0.40 or below

With our Low-E/Argon package we can qualify anywhere in the United States with any of our windows. To apply the Energy Star label to a window, it must also be accompanied by the NFRC Temporary Label.

When the window leaves the manufacturing plant it should always have three labels on it with the fourth label dependent on the glass option. The AAMA Gold label, NFRC Temporary label, and Warranty label should be on every window shipped, and the Energy Star label is added when any window uses Low-E and Argon.
